MediaTek has expanded its Wi-Fi 7 portfolio with the introduction of its new Filogic 860 and Filogic 360 chipsets. This launch marks a significant step forward in providing mainstream devices with cutting-edge wireless technology that promises peak performance and unrivalled reliability.
Introducing Filogic 860 and Filogic 360
The company’s leap into second-generation Wi-Fi 7 technology solidifies its position as a trailblazer in the connectivity arena. The Filogic 860 is a dual-band Wi-Fi 7 chipset that melds an access point with a sophisticated network processor, designed for use in enterprise access points, service provider gateways, mesh nodes, and a wide range of router applications. Its counterpart, the Filogic 360, is a standalone client chipset that integrates Wi-Fi 7 and dual Bluetooth 5.4 radios, aiming to bring the next-gen Wi-Fi 7 connectivity to a plethora of devices including smartphones, PCs, and streaming devices.

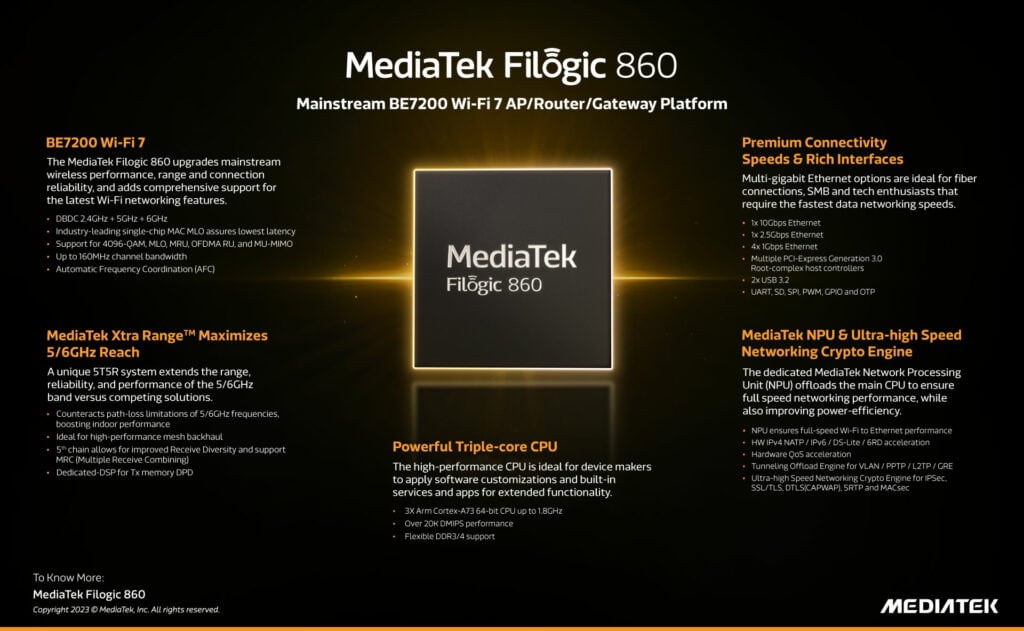

New Filogic 860 Chipset for Enterprise and Retail Markets
Key features of the Filogic 860:
- Industry-leading 6nm low power Wi-Fi design
- Single-MAC MLO support
- 4096-QAM and MRU for faster speeds
- Dual-band Wi-Fi 7 with up to 7.2Gbps speed
- Dual-band 4×4 2.4GHz and 5×5 5GHz capabilities
- Filogic Xtra range boosting technology
MediaTek’s Filogic 860 is tailored for both enterprise and retail markets, offering a comprehensive platform for dual-band Wi-Fi 7 access points, routers, and mesh nodes. This chipset stands on the shoulders of its predecessor, yet it boasts a triple-core Arm Cortex-A73 CPU. This advancement enables powerful hardware acceleration, which is instrumental in handling advanced tunnelling and security features that meet the stringent requirements of service providers and enterprises.
The chipset is characterized by its 6nm low power Wi-Fi design and single-MAC MLO support. It supports 4096-QAM and MRU, delivering industry-topping dual-band MLO speeds of up to 7.2Gbps. Moreover, the Filogic 860 offers dual-band dual concurrent capabilities with a configuration of 4T4R for 2.4GHz and 5T5R 4SS for 5GHz. One of its key features is the additional receiving antenna for zero-wait DFS, complemented by the Filogic Xtra range, which significantly boosts receiving distance.

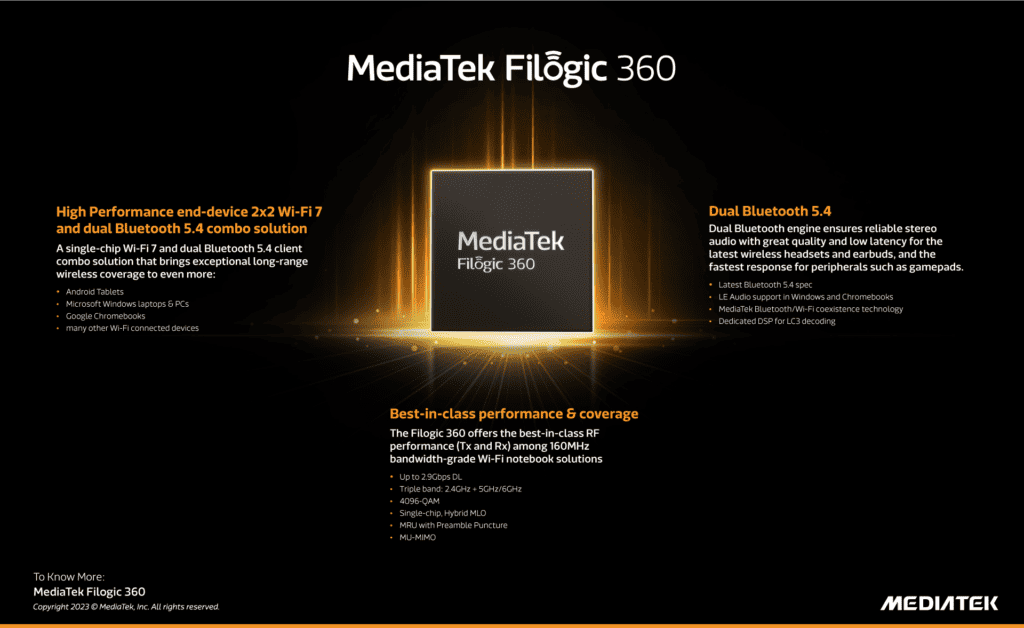

New Filogic 360 Chipset for High-Performance Client Devices
Key features of the Filogic 360:
- Triple-band Wi-Fi 7 2×2 with up to 2.9Gbps
- 4096-QAM and MRU support
- 160MHz channel bandwidth
- Filogic Xtra range boosting
- Dual Bluetooth 5.4 with BLE audio
- Advanced coexistence technology
On the other hand, the Filogic 360 is a versatile single-chip solution that promises exceptional connectivity for high-performance clients. It boasts a triple-band selectable Wi-Fi 7 with speeds of up to 2.9Gbps, 4096-QAM and MRU support, and a 160MHz channel bandwidth. To cater to the needs of modern technology, it also supports dual Bluetooth 5.4 cores, BLE audio with an integrated DSP for LC3 codec support, and MediaTek’s advanced Wi-Fi and Bluetooth coexistence technology. This ensures seamless operation on the 2.4 GHz band without interference.
Looking Towards a Connected Future
As the world leans more towards a hyper-connected reality, the need for robust and reliable Wi-Fi solutions has never been greater. MediaTek’s initiative to expand its Wi-Fi 7 portfolio with the Filogic 860 and 360 chipsets is not just timely but also revolutionary. These chipsets have begun sampling to customers, and mass production is slated for mid-2024.
MediaTek’s continued dedication to innovation is evident in its latest offerings. By enabling nearly 2 billion connected devices a year, MediaTek is not just a participant but a leader in the global semiconductor space. Its products span across mobile, home entertainment, connectivity, and IoT, pushing the envelope of what’s possible in terms of power efficiency and advanced multimedia capabilities.
As technology rapidly evolves, MediaTek’s new chipsets are set to be game-changers in the connectivity market, providing unparalleled performance, speed, and reliability. With these advancements, MediaTek is not just equipping devices with the ability to connect; it is empowering them to communicate more effectively, making great technology accessible to all.
For more information on MediaTek’s innovative solutions and to stay abreast of their latest developments, visit their website at www.mediatek.com.
