Using a thermal camera to reduce draughts & heating costs: HTI-Xintai HTI-19 infrared thermal imaging camera review

I am fortunate enough to be on a fixed contract from 2019 and have until October 2023 before I get hit with the massive increase in energy costs. I have been on a quest to reduce our electricity and gas usage with the hope of offsetting the price rise next year.

So far, I have looked at:

• Running Cost of Fridges & Freezers
• Best Smart Thermostatic Radiator Valves
• Cost of Running a Desiccant vs Compressor Dehumidifier
• Heated Clothes Rack vs Dehumidifier Electricity Running Costs
• Cost of Running a Tumble Dryer
• Cost to run a portable air conditioner

This review is a bit more on the extreme side of things. While it is quite logical to use a thermal imaging camera to try and identify poorly insulated parts of your home, the problem is that these devices cost a lot of money. The HT-19 Infrared Thermal Imaging Camera I used for this experiment costs well over £400. I’d need to be able to make some significant savings on my heating bill to justify this. Even the popular FLIR cameras for your phone will set you back over £200.

Preview	Product	Rating	Price
	New Higher Resolution 320 x 240 IR Infrared Thermal Imaging...	No ratings yet		Buy on Amazon

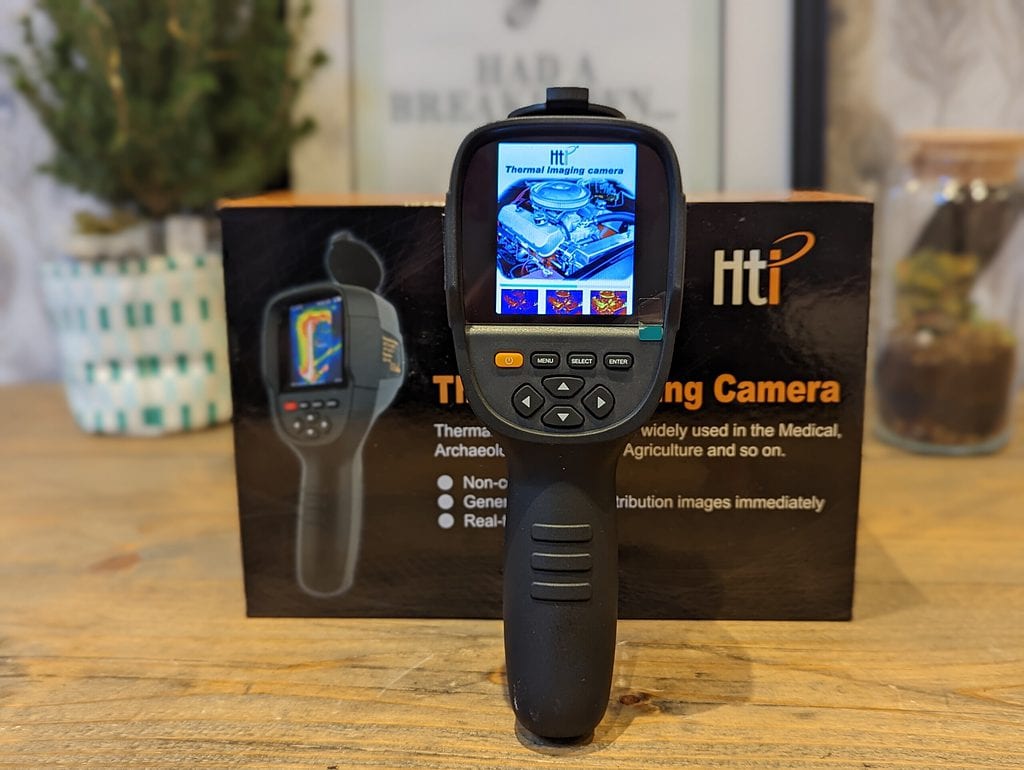

Specification

• Display: 3.2 ″ full-angle TFT display screen
• Resolution: 320×240
• Temperature measurement range: -20℃ to 300℃ (-4°F to 572°F)
• Field angle/shortest focus length: 56°x42°/0.15mm
• Thermal sensitivity: 0.07℃
• Measurement accuracy: ±2% / ±2℃
• Emissivity: Adjustable from 0.01 to 1.0
• Frame rate of thermal images: 9Hz
• Wavelength coverage: 8-14um
• Storage medium: Built-in 3GB (20+ thousand images stored)

My home

For some context, my home is typical UK brick-built semi-detached property. It is approaching 100 years old. It had triple glazing installed about 20 years ago, and the walls have been insulated. I also recently had a reroof going from a very draughty cold roof to a warm roof design.

Even though the home has had a lot of things done to improve insulation and efficiency, it is still a draughty old home with insufficient insulation.

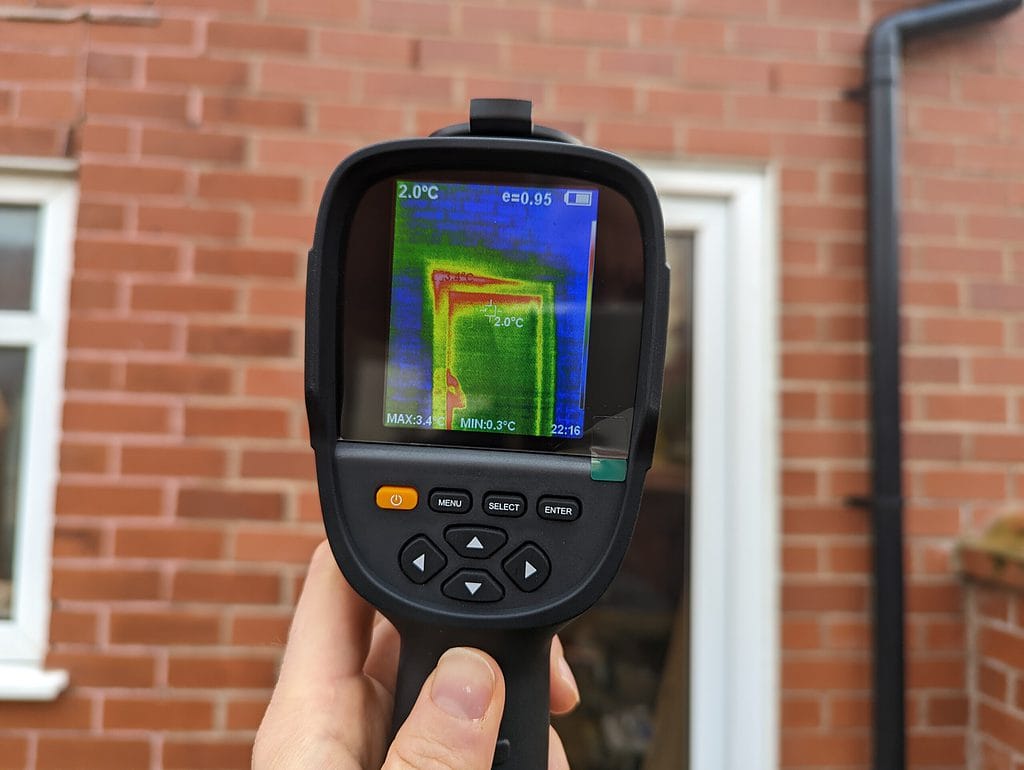

Using the camera outdoors to identify hot spots

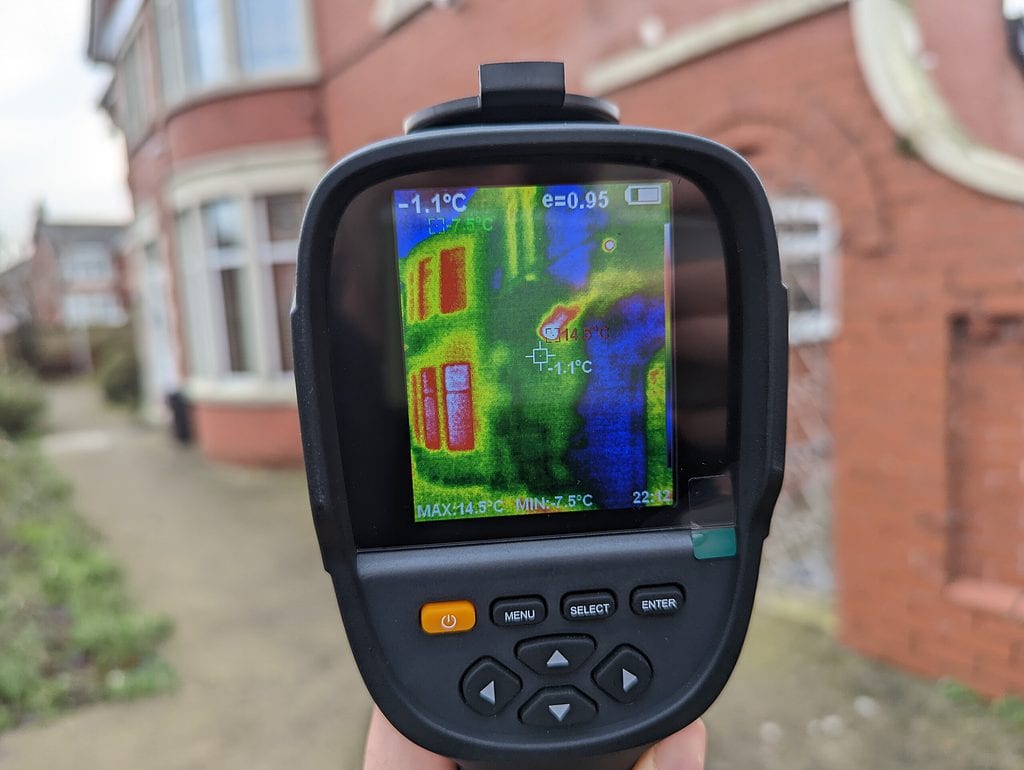

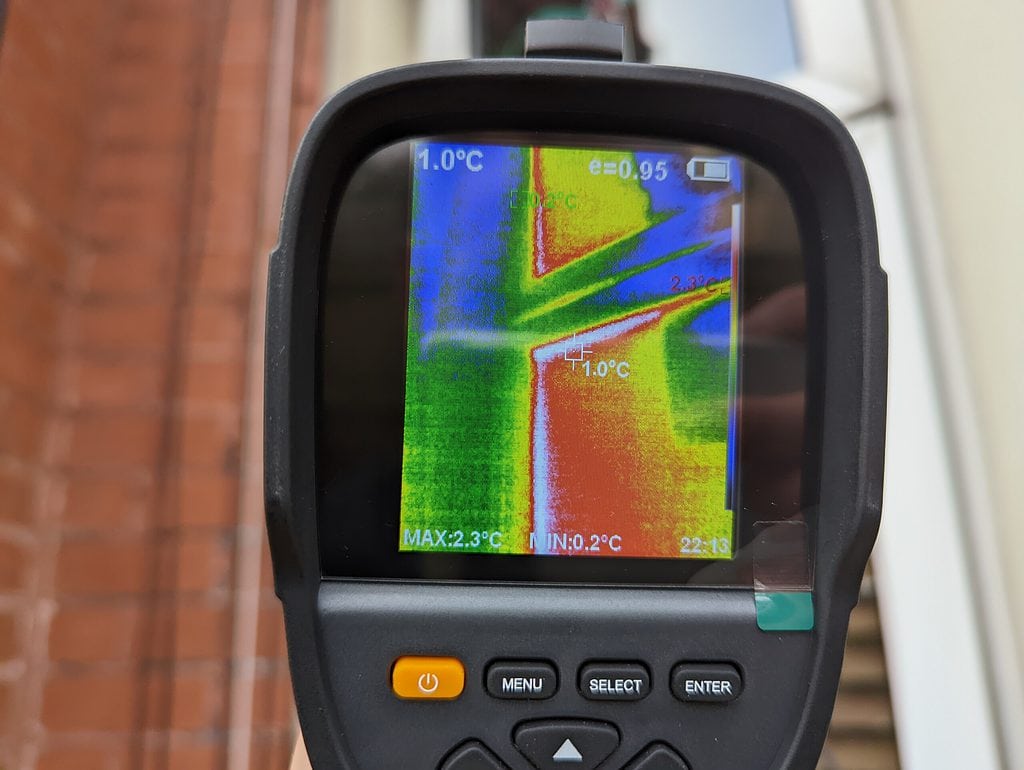

Using the camera outdoors didn’t reveal anything that wasn’t already obvious. Windows and doors were all hot spots. Edges of windows are the main hot spots. You can even identify the CCTV cameras that I have dotted around the house.

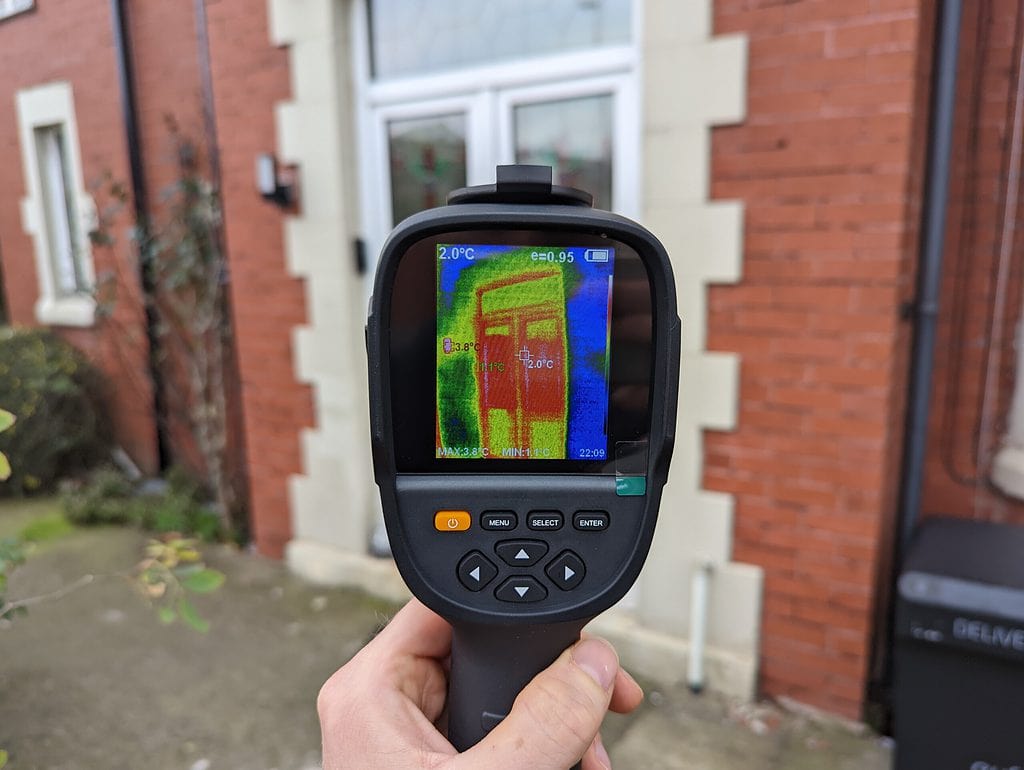

There were a couple of spots where the red hot spots extended further away from doorframes or windows than I’d expected. My back door is one likely problem area, I think the door has dropped from the frame a little bit. It is not something I was aware of personally, but one of my friends that fits doors immediately noticed it when he came around and didn’t need a camera to confirm it.

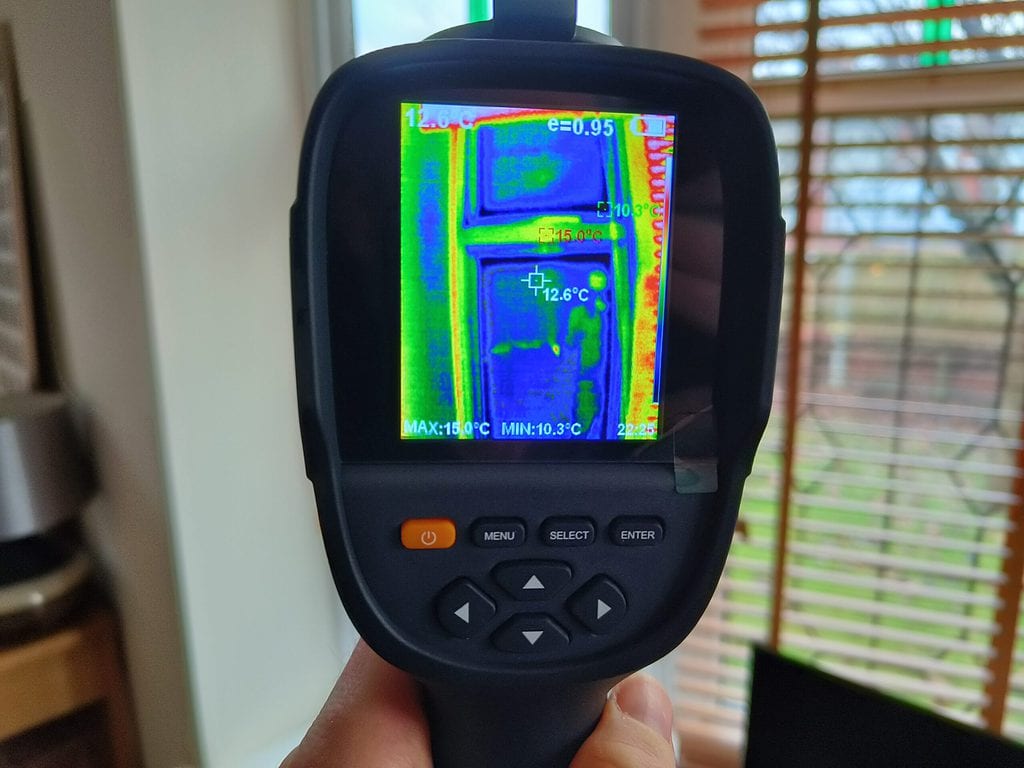

Using the camera indoors to identify draughts

Using the camera indoors to identify cold air coming in via draughts is by far the most effective way to use this camera (in my opinion).

Even though I have found it useful in this scenario, I wouldn’t say spending £400+ on a thermal imaging camera yields significantly better results than using some common sense, which should be free of charge.

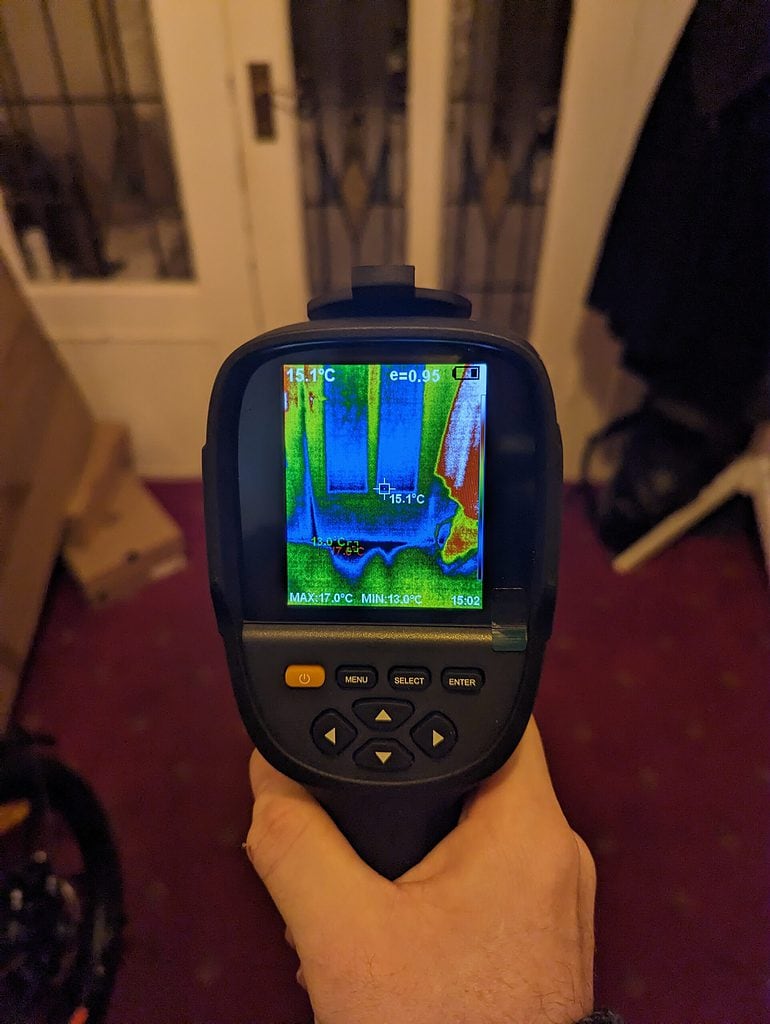

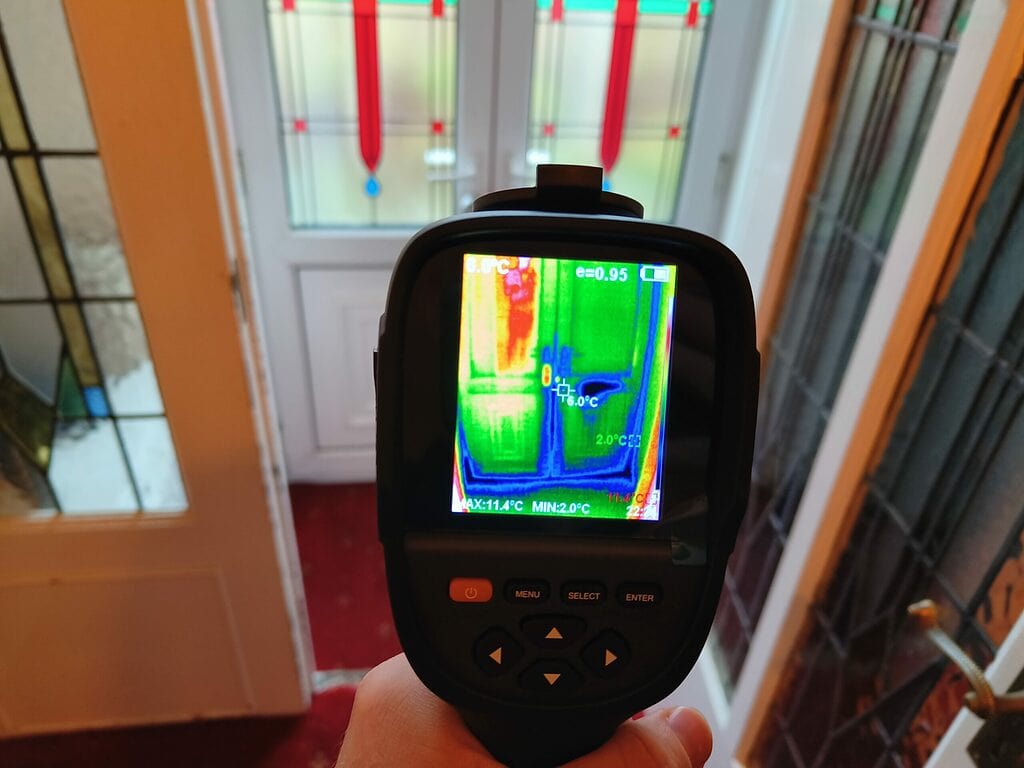

The best example I found was the inner door we have that opens up to where the front door is. This is a common design in UK homes, acting as a buffer between the colder outer door. The windows on this inner door are decorative and single-glazed, and that’s not something I am likely to fix any time soon.

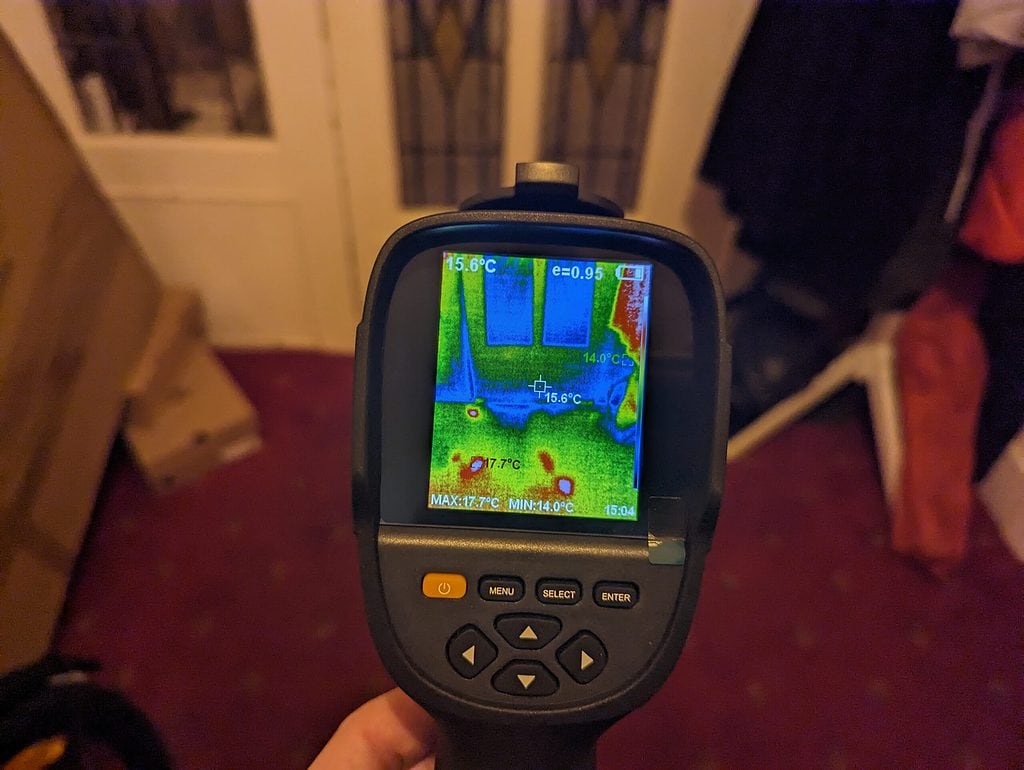

All doors have cold spots around the edges and windows, but this door quite clearly has a draughty spot to the left-hand side of the door. For this, I applied a draught excluding silicone bottom seal, which I bought from Amazon for around £8. Due to the door design, I am not convinced that it will stay in place, but it clearly has beneficial results. The dark blue spot which extended away from the door is significantly reduced. The red spots you see are where I briefly knelt down to apply the seal.

Price and Alternative Options

Preview	Product	Rating	Price
	New Higher Resolution 320 x 240 IR Infrared Thermal Imaging...	No ratings yet		Buy on Amazon

I paid £480 for the HTI-19 thermal imaging camera, which is an awful lot of money. That’s more than two months’ worth of gas and electricity and probably several months of just gas alone. So it would take a very long time to see a return on investment for this.

Most competing handheld thermal imaging cameras are £400+. Anything below this price seems to have quite poor reviews.

The competing option is the mobile phone cameras. FLIR is by far the best brand for this option you can get the FLIR ONE for as low as £207 or the Pro model for £428. I was put off because there are a lot of mixed reviews and the FLIR ONE app for Android has quite poor reviews.

Overall

My results haven’t been quite as revelationary as I had hoped, but I am not ruling out the benefits of using a thermal imaging camera to improve the efficiency of your home.

In my case, it obviously identified areas that let out heat or let in a draught, but these were all easy to guess. Even when I applied solutions to improve the insulation, the results were quite obvious.

I suppose the camera would have been more useful if there was a specific problem area within my home that was immediately obvious. Perhaps a poorly fitted window could have been fixed, and the resulting cost savings justified the cost of the camera.

For home users, I think you can feel confident that you are not missing out on a great deal by not using a thermal camera to identify problem areas within your home.

Obviously, I have only viewed this as a homeowner using it on my single house. If you plan to use this regularly on multiple properties for a business, then the cost of the device is less of an issue.

I’d say something like this is well worth borrowing if you have the option too, or perhaps you could do some sort of group buy between friends or family. I’d happily split the cost with ten people.
