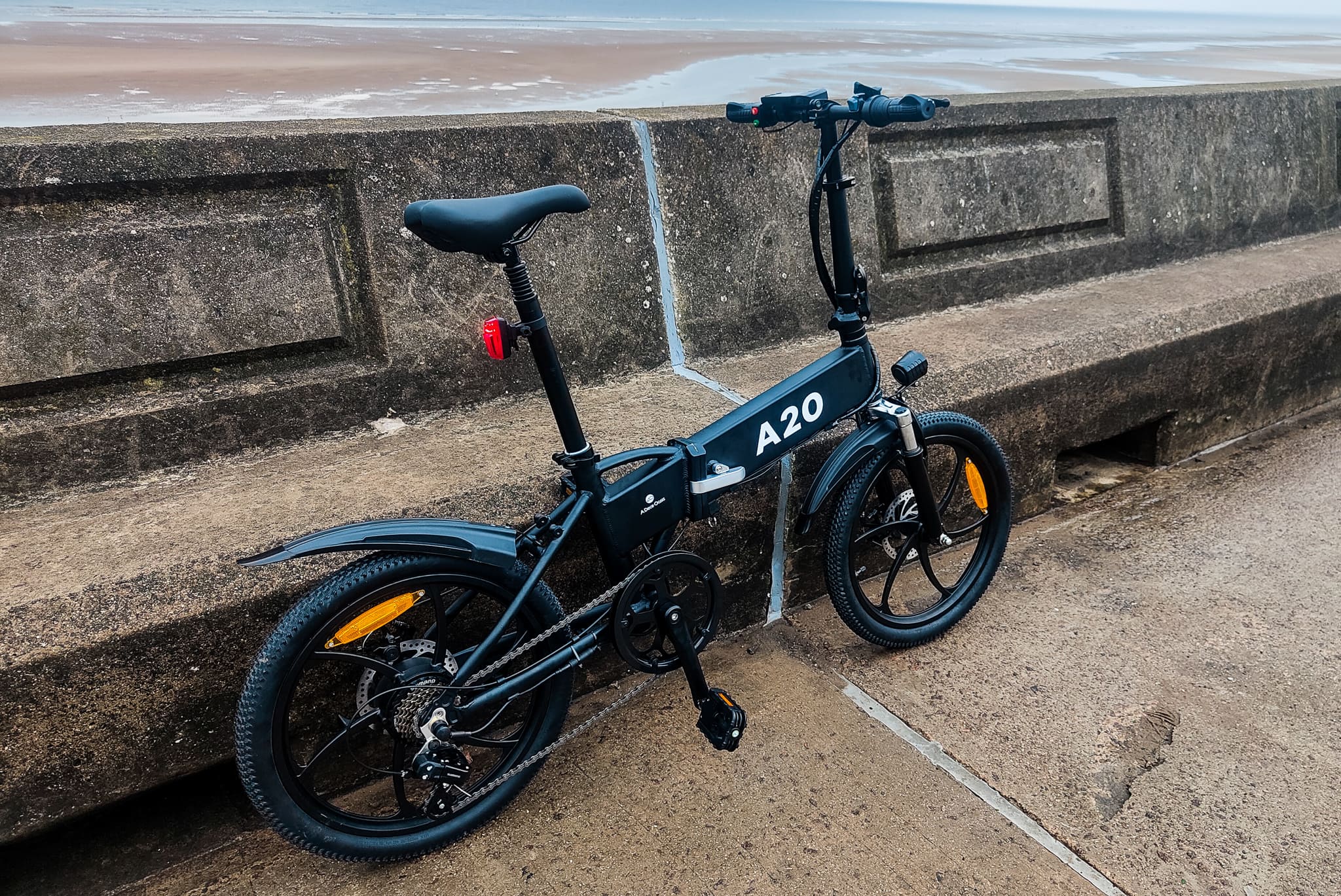

ADO A20 Folding Electric Bicycle Review Rating
I think that foldable electric bikes, in general, are superb, and the ADO A20 should be a strong consideration for anyone wanting an affordable well made bike with excellent range.
Overall - 85%
- Affordable compared to popular brands
- Comfortable ride
- Superb range
- Excellent assist
- Very heavy
I have previously reviewed the Volt Connect Electric Bike about four years ago. At the time, I was quite sceptical of the benefits of eBikes, but I did like the idea of using it for commuting.
Since then, electric scooters have become the rage, some people love them, some people hate them. I loved using them in Europe, but they are still illegal to use on the roads in the UK, so they feel more like a nuisance at the moment.
Electric bikes have also gained popularity, in particular, foldable ones such as the ADO A20 I am reviewing today. While it is not cheap, at £719, it is considerably cheaper than the Volt, and the smaller foldable design makes it a little bit more commuter-friendly.
Volt also does folding bikes, but these are around twice the price at £1599.
I have come away as a big fan of the electric bike concept. I know drivers hate cyclists, but this seems to be a logical solution to the major issues we have with congestion and an affordable and even more environmentally-friendly alternative to electric cars.
YOu can find out more about ADO from the official website or the Facebook page.
ADO are currently running a promotion for the ADO A20+ and the ADO A20F+
This runs from the 20th of Match until the 30th.
|Items||original price||Flash sale price||free gift|
|A20+||€799||€769 （save €30）||1pcs helmet|
|A20F+||€1,069||€969 (save €100)||1pair fenders|
|Dimensions L?W?H||Overall unit：1550*530*1100mm
|Transmission||Shimano 7 speed|
|Shock-absorption||Front fork and addle tube double Shock-absorption|
|Brake||Front: Mechanical disc brake|
|Rear: Mechanical disc brake|
|Charging time||6 hours|
|Adjustable of height||Yes,with protective jacket|
|Small bell||Electronic speaker|
|Mobile Phone Charging Station||5V/2A USB type A+ Charging Base|
|Hub type||Integrated molding hub|
|Tire||Rubber pneumatic tire|
|Brake||Mechanical disc brake|
|Drivenmethod||Motor drive wheel|
|Hub type||Integrated molding hub|
|Tire||Rubber pneumatic tire|
|Brake||Mechanical disc brake|
|Type||Main Girder Folding|
|Battery location||Built-in main girder|
|Reflect Sticker||On saddle tube|
|Max Steering Angle||90?(each side)|
|Rear Tale Light||/|
|Foot Pad Material||Nylon|
|Foot Pad Type||Folding|
|Type of batteries||Removable portable charging|
|Charge cut-off voltage||42V|
|Battery ManagementSystem||Over-heating, Short circuit,
Over- current, Over-charge protection
|Input Voltage||100~240V, 50/60Hz|
|Output Voltage||42V DC|
|Motor Type||Hall Brushless DC Motor|
|Rated speed||380 r/min|
|Turn On/Off||Visible button on the speed control handle|
|Riding Modes Switch|
|Front Light Switch|
|Display Type||886 Type HD LCD Display, Clearly under the sunshine|
|Display Contents||Speed, mileage, Gear, glitch|
|Electronic booster starting point||5 KM start (CE )(Can change to 0KM start by enduser)|
|Under voltage protection||31±2V|
|Over current protection||15±2A|
|Shimano 7 speed Transmission System|
|250W Power rate Motor with 380 r/Min speed|
|Front fork and addle tube double Shock-absorption|
|886 Type HD LCD Display,clearly under the sunshine|
|Humanization design,like USB Charger/Carrying handle....|

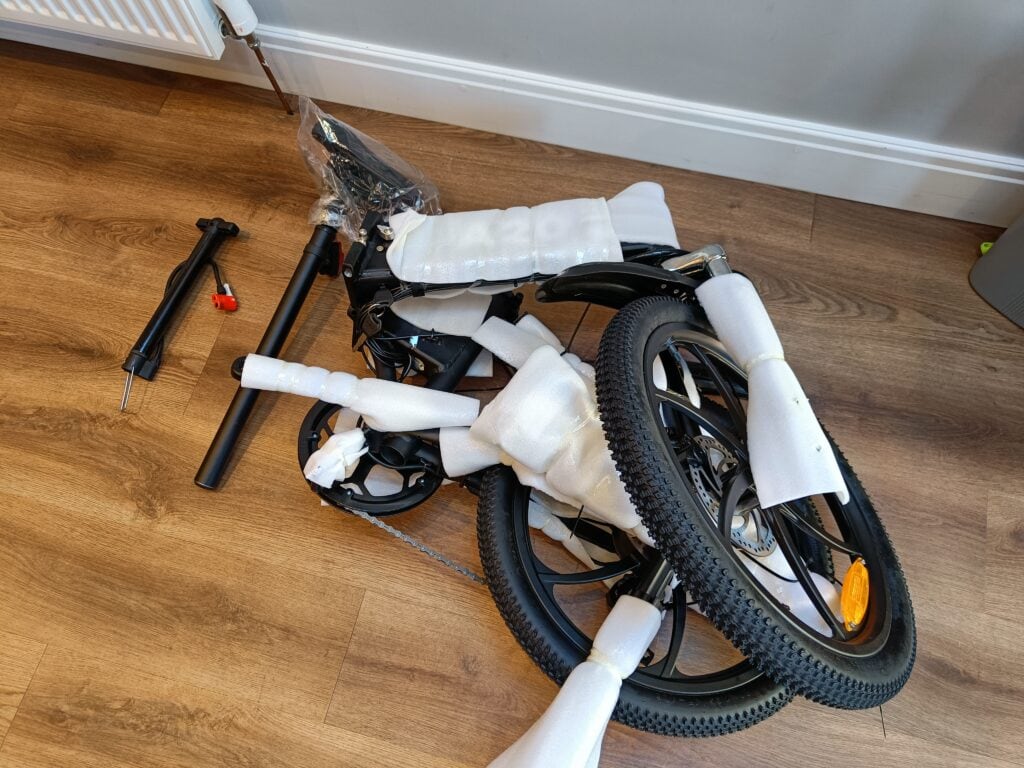

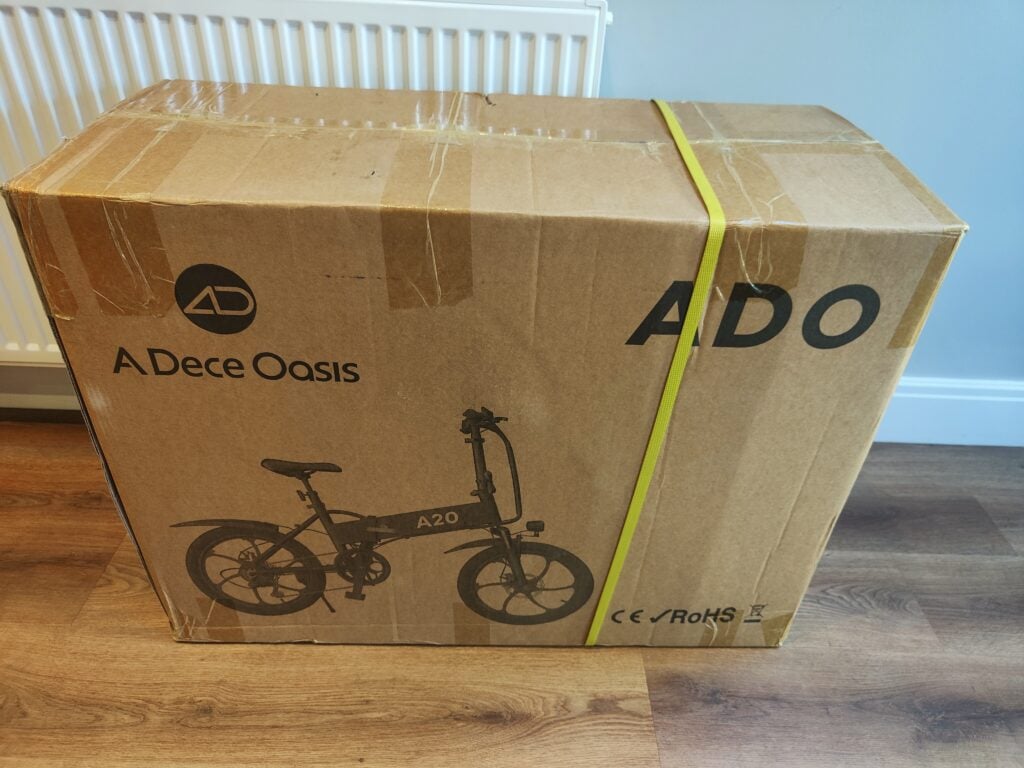

Unboxing and Build

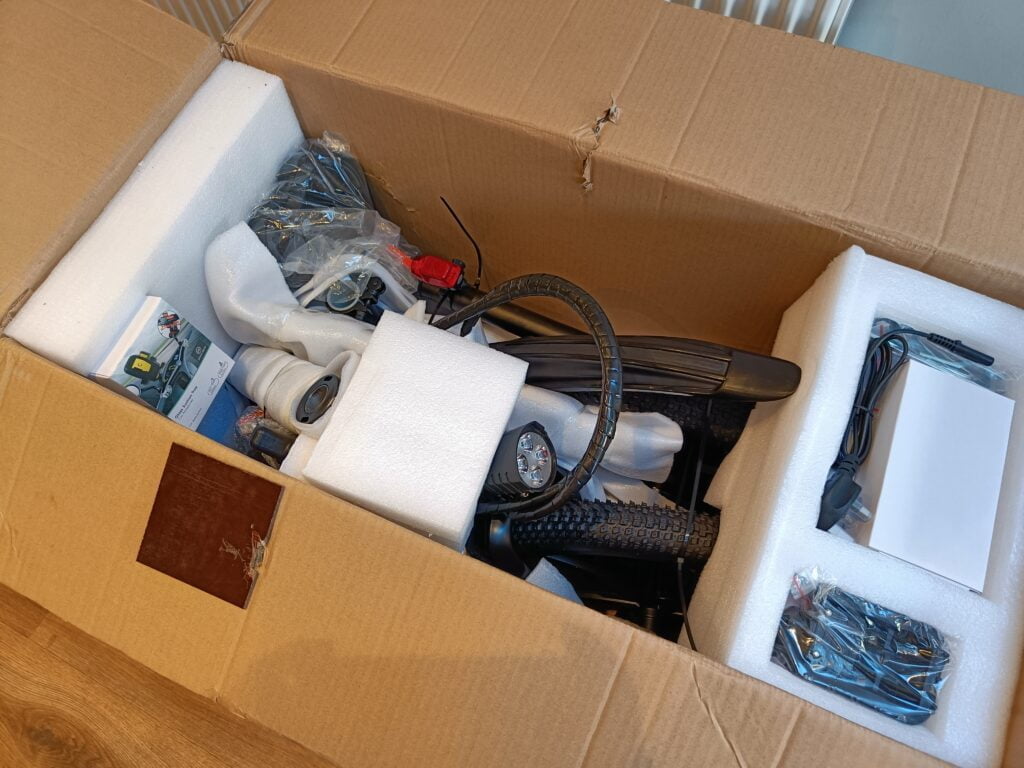

The bike appears to be packed up as well as can be. There are plenty of foram inserts to provide some padding, then large parts of the frame have additional thin padding around them, which are taped to the frame. This should help avoid unwanted scratches. There are then quite a lot of zip ties used to hold it all together during transit. Unpacking it all did take a bit of time, which is probably a good thing.
There is not much to do as far as the bike assembly is concerned. Clamping the frame tother was self-explanatory, however, the front shaft was confusing enough that I had to refer to instructions.
You have to align the two stickers together, then tighten up the hex screw in the main shaft. I found that it didn’t feel like it was doing much when tightening it, but eventually, it all locked into place.
Most things can be adjusted, including the seat high and handlebar height, so this should be customisable for almost any size.
As a road bike cyclist, finding a comfortable position took a little time. I tried setting it up as a road cyclist extending my legs fully on the down paddle, but the overall design of this prefers a more bent leg.

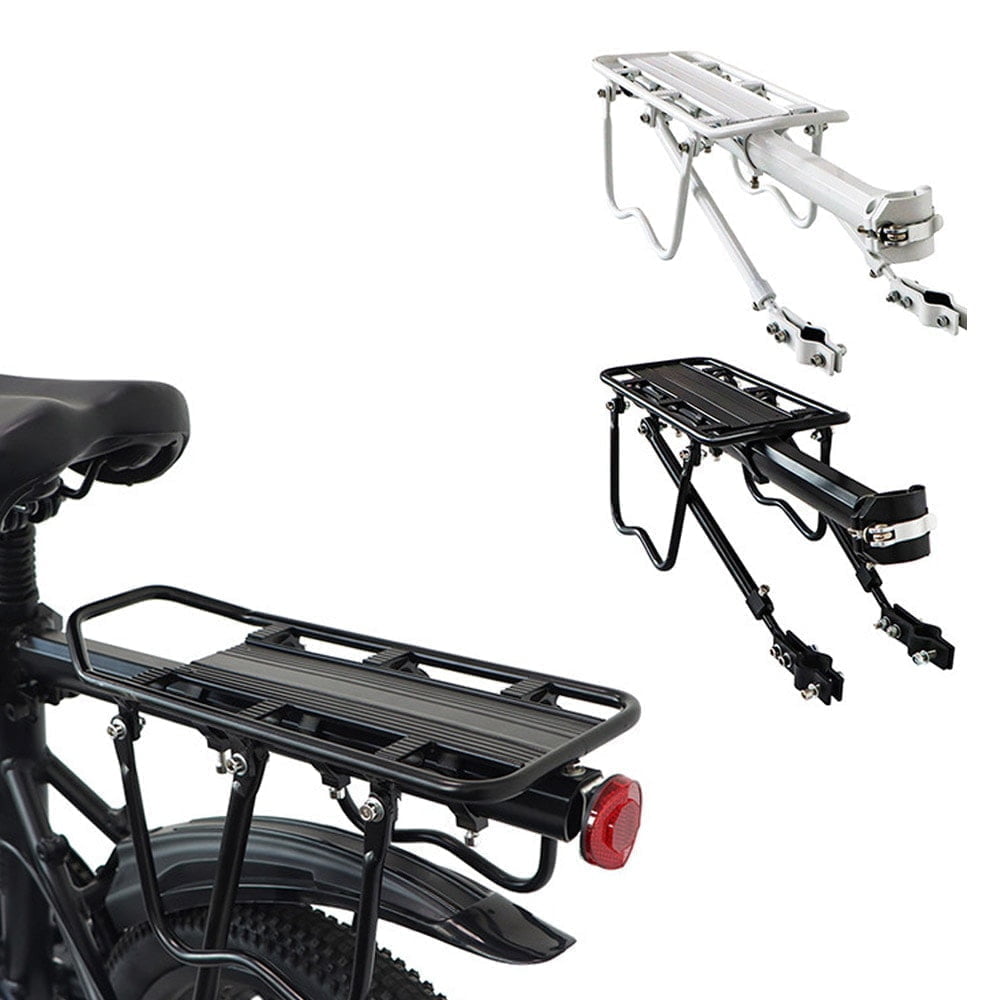

Pannier Rack / Rear Luggage Shelf
A commenter pointed out my lack of comment regarding a luggage shelf for this bike. A mistake on my behalf.
It is possible to buy a rear shelf rack for this bike and it looks like it attaches using a generic mount around the seat post and frame.
This is not currently sold by Marks Shop in the UK but you can buy it from Aliexpress and Banggood for around £46.

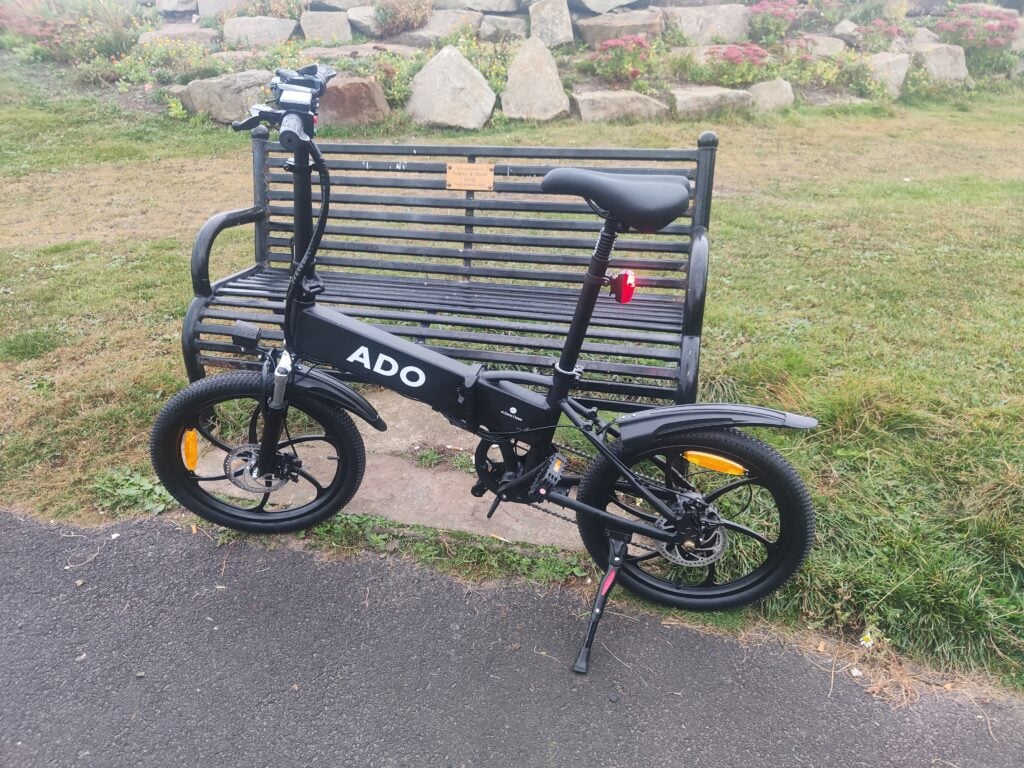

The first thing I noticed about the ADO A20 was how much it weighs. At 21Kg, this is very heavy. Some of the marketing material shows someone loading this into the boot of a car, but my partner struggled to pick it up at all.
However, the weight does mean this feels like a tank, and there are no significant built quality issues I can think of.
One reason I opted for this bike vs the larger ADO A20F with its fat wheels is the inclusion of mudguards. When I used to cycle my road bike on wet roads (a common problem in the UK), the backsplash from the wheels was very unpleasant. So the mudguards on this should help keep you a little bit drier on wet days.
The main thing was the pedals were difficult to get in smoothly (which led to my damaging them), so you may need some grease to help the installation.
The metal used on the keys is poor quality, I managed to bend one key with barely any force, so you will want to be careful there.
ADO includes a pump for your tires, I didn’t even bother to try and use it as it looks to be terrible quality. You would be better off with a track pump.
In Use – Riding experience and range

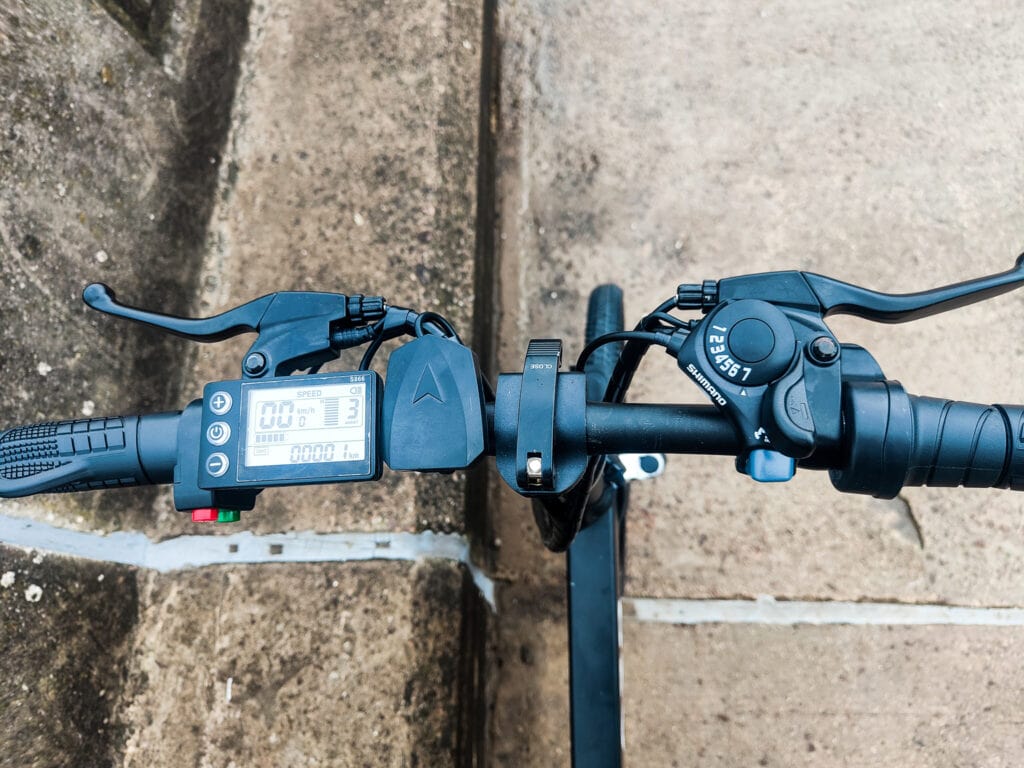

Computer and modes
The reason why this is road legal compared to an electric scooter is that you provide pedal-assist for the main modes.
You have three levels of assist as well as the electric assist switched off completely. You then also have a throttle which is on rotary selector on the right side. The throttle allows you to switch to 100% electric assist when in modes 2 and 3.
Mode 2 allows you to reach a maximum speed of around 20 km/h, and the last mode is set to 25 km/h, which is the limit of both Mode 2 allows you to reach a maximum speed of around 20 km / h, and the last mode is set to 25 km/h. It is possible to unlock this and allow it to go up to 35km/h. However, I have not done this.
I find 25km/h(15mph) is more than fast enough for most urban cycling and is quite a bit faster than most casual cyclists go. It is also slow enough that you don’t feel too unsafe riding around.
In mode 3, without the throttle, I found it very easy to maintain to 25 km/h, even going up slightly to moderate inclines was easy. With a steeper incline, things did drop down to around 20km/h, and I had to put in a little bit of offer.
Due to the weight and gearing, cycling with no assist felt sluggish, but it does a perfectly good job and should be fine on a nice day for a casual cycle.

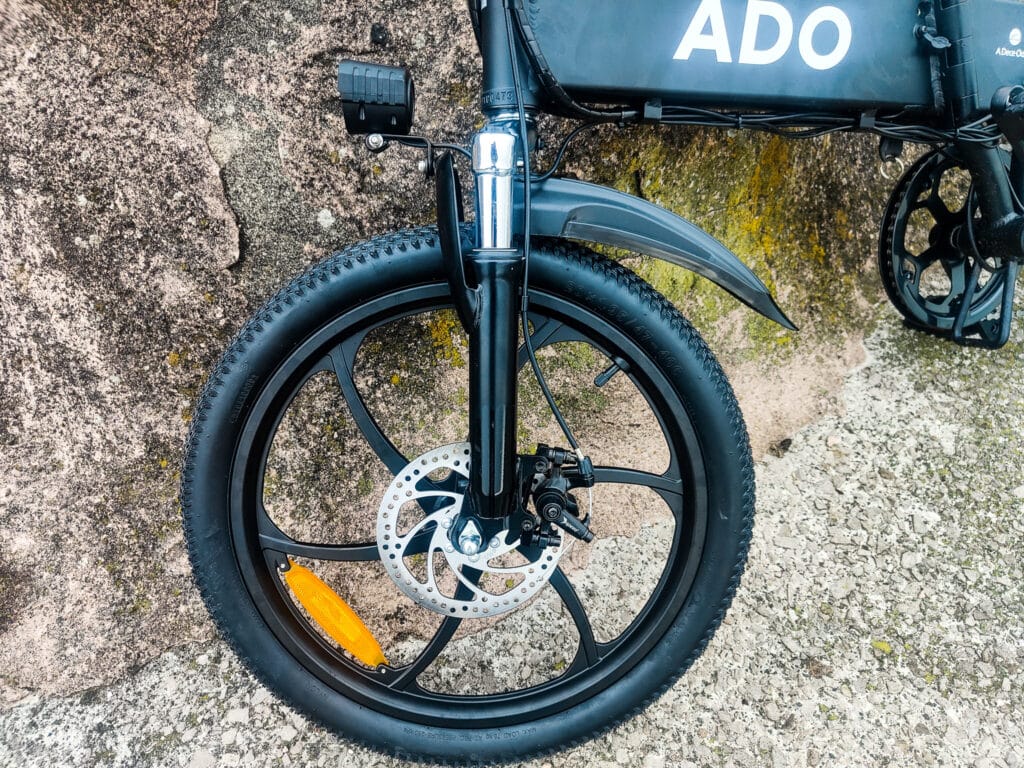

Braking is fine, you have mechanical disk breaks, it is not quite as responsive as hydraulic, but for commuting use, I have found it to be more than adequate.
The specification states an electric range of under 60km and an assisted range of 80km. Although, like most things like this, this is the best theoretical range, if you are very light cycling on a flat surface with no wind, it may be possible.
I predominantly used the level 3 assist with some hills, and I would estimate a 40-50km range. This is more than enough, I can’t imagine many people commuting 40km on a bike each way, and it is enough range for you to use it intermittently throughout the day then charge it overnight.

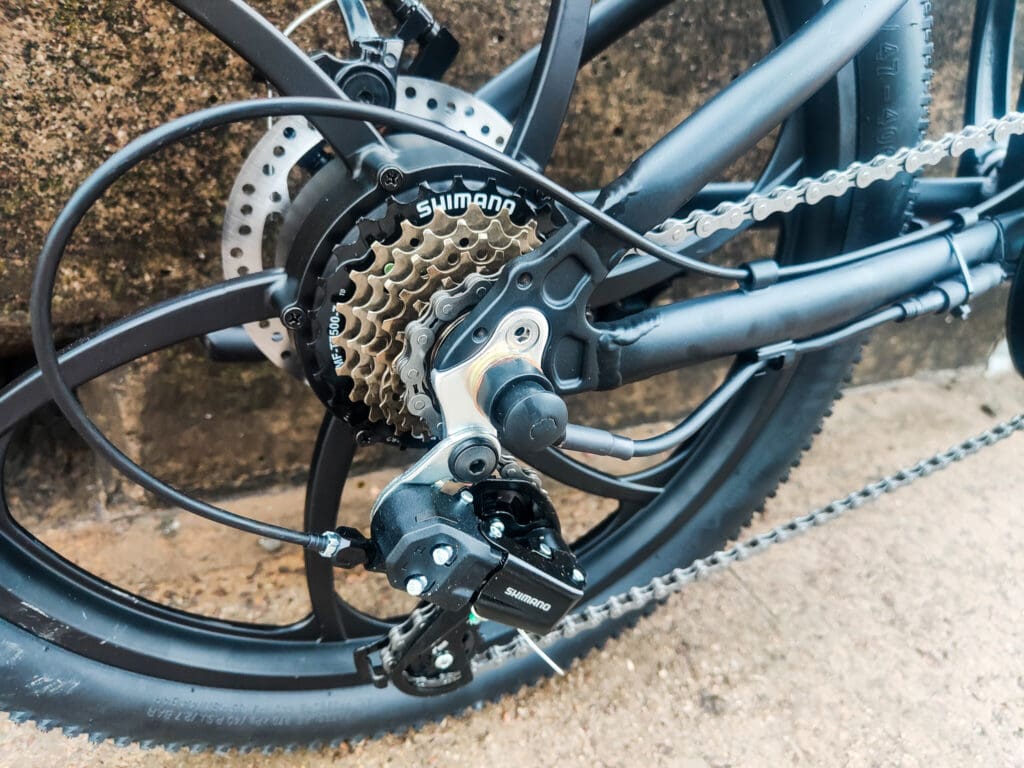

7-speed Shimano gearset
Some bikes lack properly gearing, but this has a 7-speed Shimano. I found it to be very easy gearing with me, typically leaving it in gear 7 all the time. However, it does mean you wont have to put in too much effort with cycling should you run out of juice mid-ride, and you can easily complete your journey with one of the lower settings, albeit at a much slower speed.
Shock seat post
The seat post of this has a built-in shock absorber, which felt a little unusual at times as you can literally feel the seat drop down a bit. However, it will smooth out any significant bumps keeping avoiding your rear end from getting sore.
Lights / Horn
On the controller, you have two buttons, one for the light and the second for a horn. The light is decent enough and a useful addition for commuters. Unlike normal bikes, the horn is electric, and it is surprisingly loud.
The seat also has a rear red light, but this requires you to press a button on the light itself.
How to unlock the speed of the ADO A20
This should not be done if riding on UK roads, as I believe it may be against the law. For private property, you are free to do what you like.
On the controller, hold the two-plus and minus buttons simultaneously for 5 seconds. Then short press the power button until the channel shows P08. Use the plus button to modify the channel value to the desired speed. Wait 5 seconds for the setting state to power off.
Price and Alternatives
You can buy the ADO A20 from MarkShop, which is the official UK supplier of the ADO bikes. The RRP is £749 but using the code MIGHTY30, you can get £30 off.
There seem to be quite a few of these cheap Chinese foldable bikes, and they seem to have similar specifications, and the overall design is not too dissimilar either.
MarkShop also sell the HIMO Z20 for £769, which seems very similar to this though it has a 6-speed Shimano gearset.
They then have FIIDO, which range in price from £650 to over £1100.
The Elka Model-T Pro electric scooter that I previously reviewed sold for just under £500 and I think you would be much better off with an eBike vs scooter at this price.
Foldable Electric Bike Comparison
|Name||ADO A20||Himo Z20||Fiido D4s||Carrera Crosscity||Xiaomi Mi Smart Electric Folding Bike|
|max. Speed:||25 km/h (15mph)||25 km/h (15mph)||25 km/h (15mph)||25 km/h (15mph)||25 km/h (15mph)|
|Unlocked:||35 km/h (21mph)||not available||30 km/h (18mph)||not available||not available|
|80 km (50mi)||80 km (50mi)||80 km (50mi)||30 Miles||25 Miles|
|Weight:||21.2 kg (46,7 lbs)||21.9 kg (48.2 lbs)||18.5 kg (41 lbs)||18kg||15kg|
|155 x 53 x 110 cm||147 × 61 × 109,5 cm||150 × ? × 108 cm||?||?|
|90 x 43 x 70 cm||86 × 45 × 74 cm||85 x ? x 64 cm||L93cm W40cm H74cm||?|
|Payload:||120 kg (265 lbs)||100 kg (220 lbs)||120 kg (265 lbs)||100Kg||100kg|
|Steering Rod:||adjustable||NOT adjustable||adjustable||adjustable||adjustable|
|10.4 Ah||10.4 Ah||10 Ah||8.7Ah||5.8ah|
|Sensor:||G Drive (improved speed sensor)||Hall Sensor||Speed Sensor||Speed Sensor||torque sensor|
|Powers from standing still:||Yes||No||Yes||?||?|
|Tires:||20″ air tube||20″ air tube||20″ air tube||20″ air tube||16"|
|Yes / Yes||No/No||No/No||Rigid||Rigif|
|Brake:||mechanical (disc)||mechanical (disc)||mechanical (disc)||Rim||Rim|
|7-speed (Shimano)||6-speed (Shimano)||6-speed (Shimano)||8-speed (Shimano)||Single gear|
|Mudguards||included||included||not included||included||Not Included & no mounts|
|Pennier||Not included||Not included||Not included||Yes||Not Included & no mounts|
I kind of love the ADO A20, though I am partially biased as it is more the idea of an electric bike like this that I love.
Apart from the fact that it is quite large, heavy and more expensive, this is a considerably better solution than electric scooters. Being road legal makes it orders of magnitude better from the get-go.
While the speed limiter is the same 25km/h as an electric scooter, I am much more likely to go at this speed on a bike than a scooter, it feels much safer. You are also able to carry a much heavier load, either via a backpack or a rear bike rack. This, therefore, makes this ideal for commuting.
Overall, I think that foldable electric bikes, in general, are superb, and the ADO A20 should be a strong consideration for anyone wanting an affordable well made bike with excellent range.
